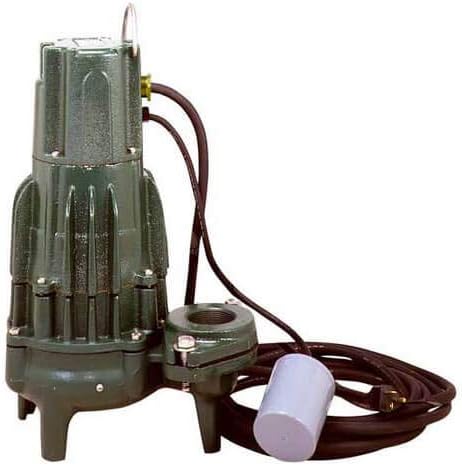

Cast Iron Sewage Pump with Wired Float Switch V204829

Includes wired float switch

Features:

• Durable cast iron constructed switch case, base, motor and pump housing
• No sheet metal parts to rust or corrode
• All cast iron class 25-30 25000# tensile strength
• Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
• Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
• Bronze class 84-8-0-4, non-clogging vortex impeller
• Maximum temperature for sewage or dewatering 130F (54C), 120F (49C) for WD295
• If over 130F (54C), consult factory
• Shaft seal - stainless steel carbon & ceramic rotary
• Corrosion resistant powder coated epoxy finish
• Upper sleeve bearing and lower ball bearing running in bath of oil
• Neoprene square ring & gasket
• All models pass 2' spherical solids
• Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
• On point: 14-3/4'
• Off point: 5'
• 2' NPT female flanged vertical discharge (3' available upon request)
• 100% computerized tested
• Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Specifications:

• Type: Automatic
• Application: Sewage Waste Transfer
• Features: With Wired Float Switch
• Material: Cast Iron
• Horse Power: 2
• Voltage: 230v
• Amperage: 17.1
• Phase: 1
• Seal: Single
• RPM: 3450
• Cord Length: 20'
• Cord Type: UL Listed 3-Wire Neoprene Cord & Plug
• Height (Inches): 18.5625
• Width: 12-7/8'
• Features: Includes Piggyback Variable Level Float Switch
• Flow at 5 FT Head: 214 GPM
• Flow at 10 FT Head: 199 GPM
• Flow at 15 FT Head: 184 GPM
• Approvals: UL/CSA
• Solids Size: 2'
• Discharge: 2'
• Weight (lbs): 92 lbs
